In the photo gallery below, we can see the latest Formula 1 updates and technical features on the Ferrari SF-23 single-seater at the Miami paddock in Florida, brought by the Italian side for the fifth race of the 2023 Formula 1 season, the Miami Grand Prix, which takes place at the purpose-built temporary circuit around Hard Rock Stadium:
Ferrari SF-23 technical detail
Ferrari has employed a brake disc fairing in the 2023 Formula 1 championship, which has needed a change in tack when it comes to the position of the caliper. As part of this reorganisation the fairing which encloses the caliper and the pipework that delivers cool air from the inlet have also been redesigned.

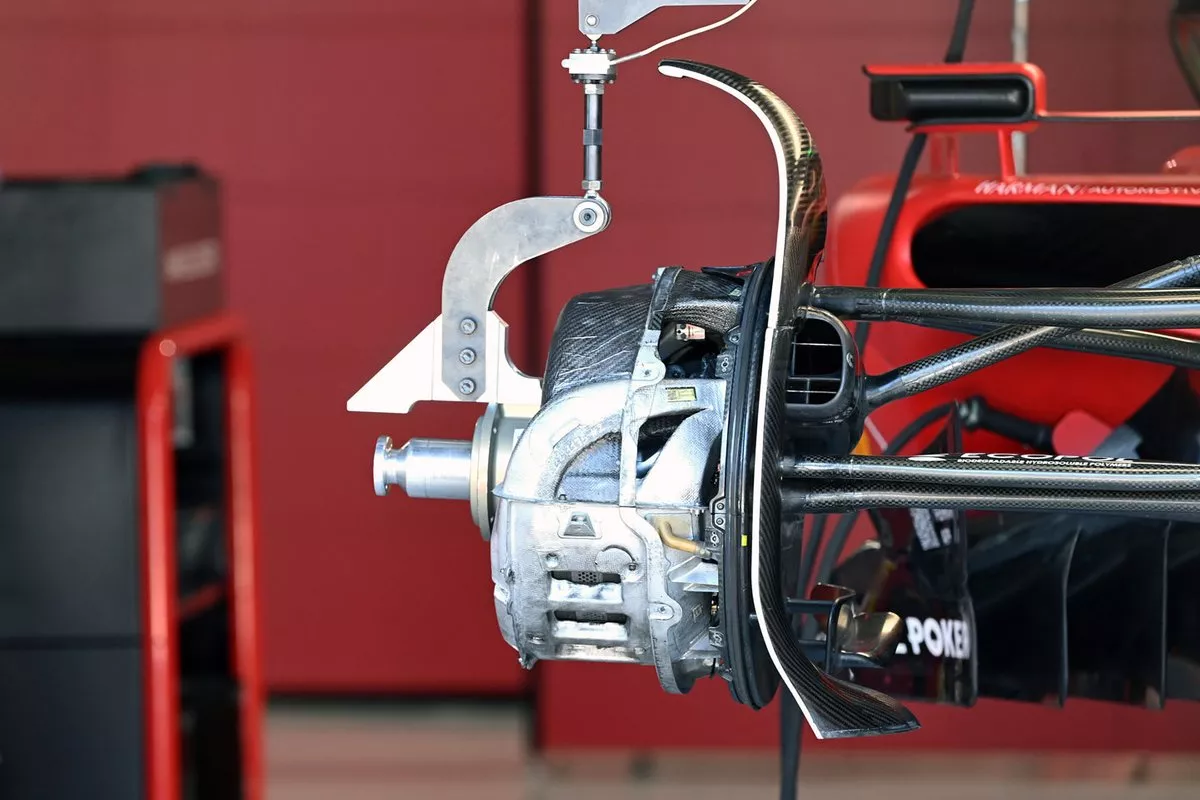

Ferrari SF-23 technical detail
In this image we can notive the assembly without the caliper fairing’s blanking cover in place, which gives us the chance us to see the drill pattern in the disc and how closely sandwiched it is within the track.

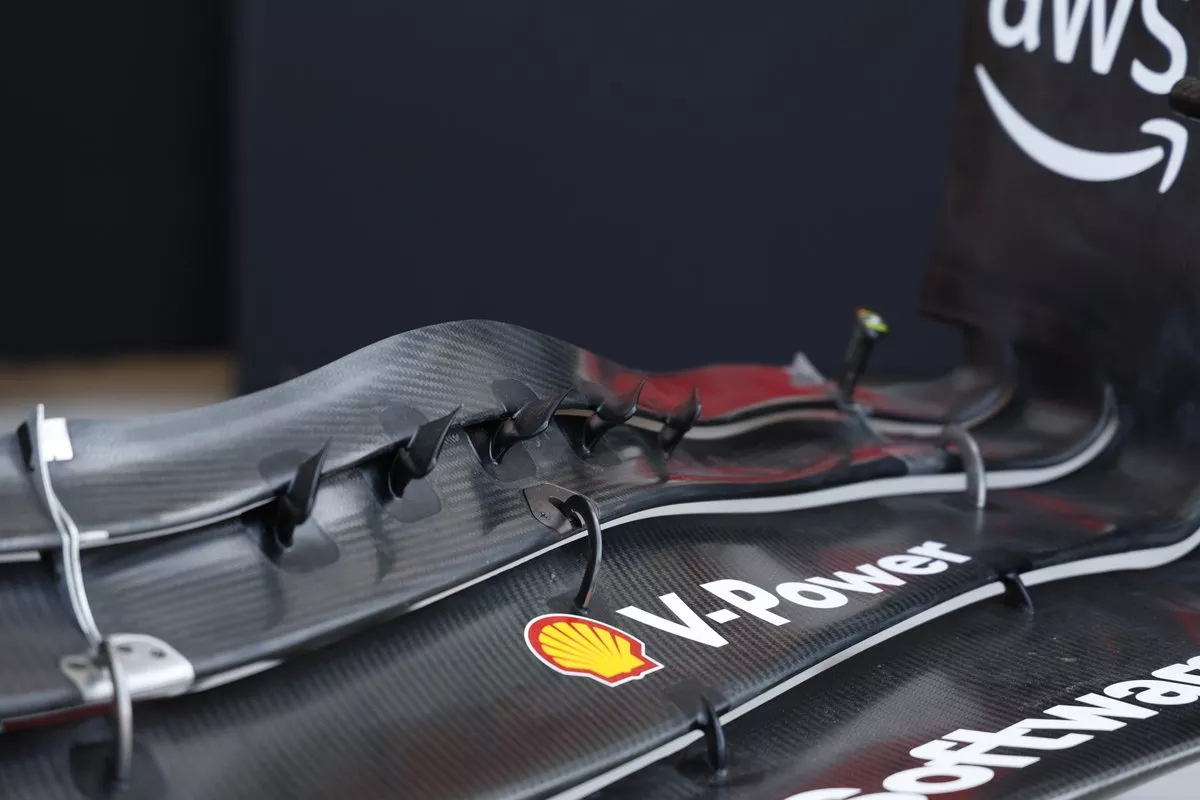

Scuderia Ferrari front wing detail
A close up of the Ferrari SF-23’s front wing slot gap separators that clearly have an aerodynamic goal, as they move the airflow laterally across the front tyre.

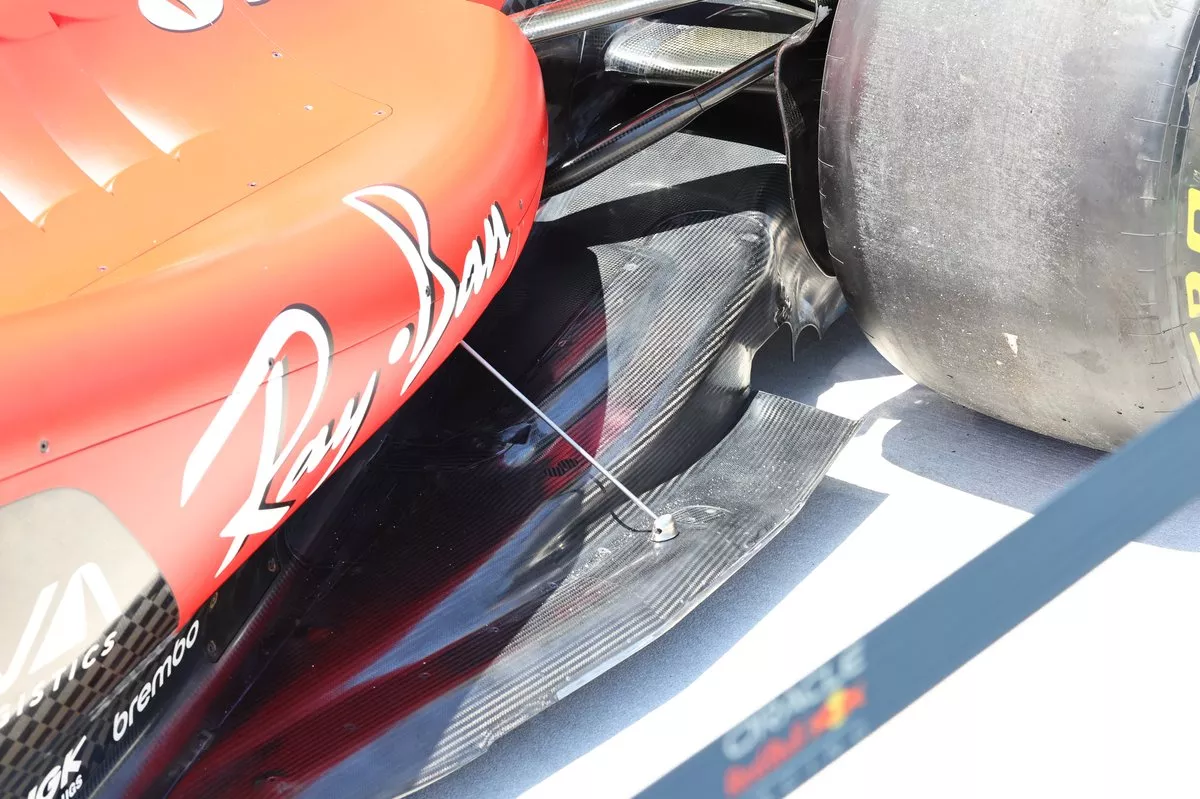

Ferrari SF-23 floor
Here we can see the rear section of floor on the Ferrari SF-23 car: the double mouse hole in the diffuser’s sidewall is a notable feature for the Maranello car this season
Ferrari SF-23 rear wing
The Italian side has the SF-23 set up with the lower downforce rear wing at the Miami International Autodrome, with the mono pillar and sawn off tip section.
Ferrari SF-23 technical detail
